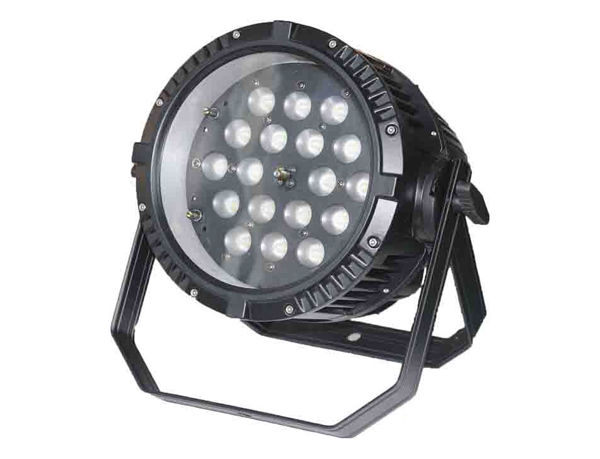

18 x 15W Waterproof 6 In 1 RGBWA UV Led Par Light With Zoom Function

Features:

1. 30min Waterproof test,24-48h aging test.

2. Power Board and Driver board is self-production.

3. Power Cable is against cold and freezing.

4. Tian Xin source "strategic partner".

Specification:

OPTICS
Using Ledlink secondary optical Lens
Lens Angle: 15° 25° 20° 45° 60°

COLOR SYSTEM
Color: R14 G14 B14 W12
Dimming: 65536 levels,can preset 5 dimming curves,also can be called by controller directly
Use: Stage, Wedding, TV Show, Theatre

CONTROL SYSTEM:
DMX Channel: 3 4 5 6 7 9 11 HSV
DMX protocol signal: USITT DMX 512
Display board: Four independent buttons
DMX signal connection: 3 pin XLR input and output
Software upload through DMX input
Power Cable: Silicone cable, Cold-proof and freeze-proof under -40℃
BODY:
Die-cast Aluminum case

ELECTRONICS:
Cooling system: Shell heat dissipation, Temperature control
“AUTO TEST” function from menu
IP Rate: IP67
Cooling system monitoring
DMX level monitoring on all channels

SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating
WORKING POSITION
Functions in any position.

CERTIFICATE:
CE, RoHS

Introduction to enterprise

Guangzhou Xinxiang (XPRO) Lighting Equipment Factory by two lighting design engineer assembly was established in May 2010. Company in a professional stage started from LED products, at the beginning LED products generally have not yet stable when we put forward a two-year warranty, but until now only need 1 year warranty and we have opened up more series product line covers installation, professional performances, wedding celebrations, entertainment lighting, lighting engineering aspects of products.

High quality resources Ltd.

(1) Materials all
We are Guangzhou Tianxin source "strategic partner", in the selection of materials we did not lose the leading enterprises in the same industry, and even our strength is more superior than many of our enterprises adopt early and intelligent mobile phone now popular with the level of COTEX-ARM7 32 bit CPU, achieve a better than commonly available 8bit256 class 16bit processing spectrophotometry 65536 level gray tone, LED adjustable lamp linear smoother.
Shaking his head lights we used signal filtering technology advanced, high beam lamps in our series moving faster, more responsive, have been close to or reached the same level of Italy pocky.

(2) The process of solid
The main board, driver board is self production, higher than outsourcing assembly costs generally small businesses (our volume did not do professional circuit board high) but for the quality of the control will be more in place, after-sales service will be more quickly.
Each head lamp relates not only to future to maintain part of each screw are adding anaerobic glue reinforcement, production head light has not received a complaint from the start off screw.
LED waterproof products per lamp before leaving the factory must be soaked in water to test 30 minutes, aging time is 24 ~ 48 hours, engineering installation products we ensure the repair rate is less than 5/1000.

(3) Technical team
We are a young firms, but that day from the beginning we will focus on product development and technology innovation. We have our own software engineers, hardware design engineer, we also have a lighting division, not only can support your live show, also on behalf of the training of technical staff you need.
The XPRO has been dedicated to the industry, only more professional.
The XPRO man always want to do more, just as you do less!
